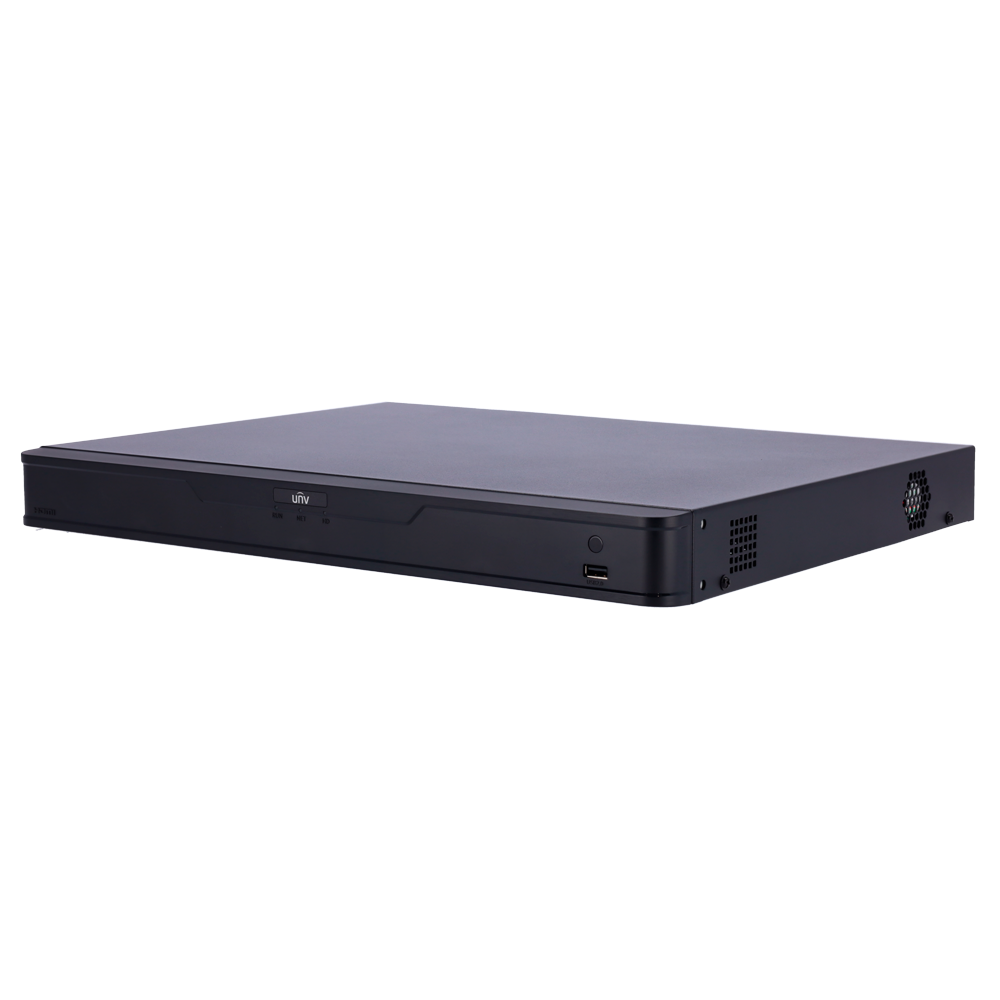

Uniview NVR304-32B-IQ 32 Channel 12MP NVR
Key Features
32-Channel Input
Support Ultra 265/H.265/H.264 Video Compression
12MP Resolution Recording
4 SATA HDD Up to 10TB Storage
1 Year Warranty
Specification
Basic Info | |
|---|---|
| Brand | Uniview |
| Model | NVR304-32B-IQ |
Design | |
|---|---|
| Product Type | NVR |
| Form Factor | Rack |
| Body Color | Black |
| Chassis | 1U |
Video And Audio | |
|---|---|
| Video Input Chanel | 32-ch |
| HDMI Output | 4K(3840x2160)/30Hz, 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz,1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz |
| VGA Output | 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz,1280x720/60Hz, 1024x768/60Hz |
| Audio Input | 1-ch |
| Two-way Audio | 1-ch, RCA |
| Synchronous Playback | 16‑ch |
Recording/Decoding | |
|---|---|
| Video Compression | Ultra265/H.265/H.264 Video Formats |
| Resolution | 12MP/8MP/6MP/5MP/4MP/3MP/1080P/960P/720P/D1/2CIF/CIF |
| Decoding Capability | Smart Off： 2 x 12MP@30, 2 x 4K@30, 4 x 4MP@30, 10 x 1080P@30, 20 x 720P@30, 32 x D1 Smart On： 2 x 4K@30, 4 x 4MP@30, 8 x 1080P@30, 16 x 720P@30, 32 x D1 |
| Audio Compression | G.711A, G.711U |
Network | |
|---|---|
| Network Protocol | TCP/IP, P2P, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP, RTSP, 802.1x, IPv6, IPv4 |
| Remote Connection | 128 |
| Total Bandwidth | 288Mbps |
Interface | |
|---|---|
| Network Port | 2 RJ45 10 M/100 M/1000 M self-adaptive Ethernet Interface |
| USB Interface | Front panel: 1 × USB2.0, Rear panel: 1 × USB2.0, 1 × USB3.0 |
Storage Info | |
|---|---|
| HDD Interface | 4 SATA Interfaces |
| Capacity | Up to 10 TB for each HDD |
Power | |
|---|---|
| Power Supply | DC 12 V/5A |
| Consumption | 12W |
Additional Info | |
|---|---|
| Certification | CE; FCC; UL; RoHS; WEEE |
| Others | VCA Detection by IPC: Face Detection, Vehicle Detection Smart by NVR: Face Detection, Smart Intrusion Prevention (SIP), Ultra Motion Detection (UMD) VCA Search: Motor Vehicle Search, Non-Motor Vehicle Search, Human Body Search, General Search, People Counting Report, Heat Map, AcuSearch Smart by IPC: All channels (up to 8 images/s in total)Face Detection, Vehicle Detection, SIP, UMD, Traffic Monitoring Vehicle Picture Library: Up to 5 vehicle picture libraries, with up to 25,000 vehicle pictures in total SIP by NVR: 2-ch UMD by NVR: 4-ch |
| Made in | China |
Physical Description | |
|---|---|
| Dimensions | 440 × 350 × 48mm |
| Weight | 3.4 Kg |
Warranty | |
|---|---|
| Warranty | 1 Year |
| Warranty Details | 1 Year Brand Warranty |
| Warranty Policy | No Warranty for Physical & Burn Damage |
Description
Brand: Uniview
Model: NVR304-32B-IQ
Product Type: NVR
Form Factor: Rack
Body Color: Black
Chassis: 1U
Video Input Chanel: 32-ch
HDMI Output:
4K(3840x2160)/30Hz, 1920x1080p/60Hz, 1920x1080p/50Hz,
1600x1200/60Hz,1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
VGA Output:
1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz,
1280x1024/60Hz,1280x720/60Hz, 1024x768/60Hz
Audio Input: 1-ch
Two-way Audio: 1-ch, RCA
Synchronous Playback: 16‑ch
Video Compression: Ultra265/H.265/H.264 Video Formats
Resolution: 12MP/8MP/6MP/5MP/4MP/3MP/1080P/960P/720P/D1/2CIF/CIF
Decoding Capability:
Smart Off： 2 x 12MP@30, 2 x 4K@30, 4 x 4MP@30, 10 x 1080P@30, 20 x 720P@30, 32 x D1
Smart On： 2 x 4K@30, 4 x 4MP@30, 8 x 1080P@30, 16 x 720P@30, 32 x D1
Audio Compression: G.711A, G.711U
Network Protocol:
TCP/IP, P2P, NTP, DHCP, PPPoE, HTTP, HTTPS,
DNS, DDNS, SNMP, SMTP, RTSP, 802.1x, IPv6, IPv4
Remote Connection: 128
Total Bandwidth: 288Mbps
Network Port: 2 RJ45 10 M/100 M/1000 M self-adaptive Ethernet Interface
USB Interface: Front panel: 1 × USB2.0, Rear panel: 1 × USB2.0, 1 × USB3.0
HDD Interface: 4 SATA Interfaces
Capacity: Up to 10 TB for each HDD
Power Supply: DC 12 V/5A
Consumption: 12W
Certification: CE; FCC; UL; RoHS; WEEE
Others:
VCA Detection by IPC: Face Detection, Vehicle Detection
Smart by NVR:
Face Detection, Smart Intrusion Prevention (SIP),
Ultra Motion Detection (UMD)
VCA Search:
Motor Vehicle Search, Non-Motor Vehicle Search, Human Body Search,
General Search, People Counting Report, Heat Map, AcuSearch
Smart by IPC:
All channels (up to 8 images/s in total)Face Detection,
Vehicle Detection, SIP, UMD, Traffic Monitoring
Vehicle Picture Library:
Up to 5 vehicle picture libraries,
with up to 25,000 vehicle pictures in total
SIP by NVR: 2-ch
UMD by NVR: 4-ch
Dimensions: 440 × 350 × 48mm
Weight: 3.4 Kg
Warranty: 1 Year
Made in: China
