Regular Price:55,000৳
Special Price:52,000৳
E-com Price:51,800৳
Need Help? Call Us: 09613 181819
Regular Price:55,000৳
Special Price:52,000৳
E-com Price:51,800৳

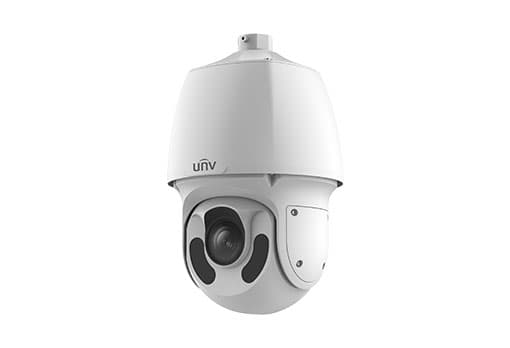

4MP (2688 × 1520) Resolution
4.5 - 148.5mm Lens
33x Optical Zoom
150 Meter Night Vision IR Distance
256GB Storage Capacity
1 Year Brand Warranty
Basic Info | |
---|---|
Brand | Uniview |
Series | Dolphin |
Model | IPC6624SR-X33-VF |
Design | |
---|---|
Product Type | PTZ Camera |
Form Factor | Dome |
Camera Type | Varifocal |
Usage | Outdoor |
Casing | Metal |
Body Color | Black and White |
Working Distance | 150 Meter |
Camera | |
---|---|
Image Sensor | 1/2.8" CMOS Sensor |
Mega Pixel | 4MP |
Camera Resolution | 2688 (H) × 1520 (V) |
Shutter Time | Auto/Manual, 1 ~ 1/100000s |
Day & Night | IR-cut filter with auto switch (ICR) |
Lens | |
---|---|
Lens Type | AF automatic focusing and motorized zoom lens |
Focal Length | 4.5 - 148.5mm |
Optical Zoom | 33 |
Field of View | (H) 51.4° - 2.5° (V) 30.3° - 1.4° (D) 63.2° - 3.0° |
Illuminator | |
---|---|
IR Range | Up to 150m |
Wavelength | 850nm |
IR On/Off Control | Auto/Manual |
Lifetime | 60,000 Hours |
DORI | |
---|---|
DORI Distance | 4.5mm: D: 105.8m, O: 42.3m, R: 21.2m, I: 10.6m 148.5mm: D: 3172.5m, O: 1269.0m, R: 634.5m, I: 317.3m |
Image | |
---|---|
SNR | 56dB |
White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 |
PTZ | |
---|---|
Pan Range | 360° (endless) |
Pan Speed | 0.1°/s ~ 200°/s |
Tilt Range | –15° ~ 90° (auto reverse) |
Tilt Speed | 0.1°/s ~ 120°/s |
Number of Presets | 1024 |
Patrol Stay Time | 15s~1800s |
Home Position | Support |
Network | |
---|---|
Interface | Lan |
Ethernet | 1 * RJ45 10M/100M Base-TX Ethernet |
Protocol | IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL/TLS, 802.1x, SNMP |
Maximum User Access | 32 Users |
Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API,SDK |
Client | EZStation,EZView,EZLive |
Storage | |
---|---|
Storage Type | ANR,NAS(NFS) |
Edge Storage | Micro SD, up to 256GB |
Video | |
---|---|
Video Compression | Ultra 265, H.265, H.264 |
Frame Rate | Main Stream: 4MP(2688*1520),Max 30fps; Sub Stream: 2MP (1920*1080), Max 30fps; Third Stream: D1 (720*576), Max 30fps; |
ROI | Up to 8 areas |
Video Stream | Triple streams |
OSD | Up to 8 OSDs |
Audio | |
---|---|
Audio Compression | G.711U, G.711A |
Power | |
---|---|
Power Supply | AC 24V |
Power Consumption | Max 25W |
Security | |
---|---|
Ingress Protection | IP67 |
Surge Protection | 4KV |
Certification | |
---|---|
CE | EN 55032,EN 61000, EN IEC 61000 |
Safety | UL 62368-1, 2nd Ed., Issue Date: 2014-12-01 |
Additional Info | |
---|---|
Made in | China |
Physical Description | |
---|---|
Dimensions | 227 x 384.8mm |
Weight | 5.28kg |
Warranty | |
---|---|
Warranty | 1 Year |
Warranty Details | 1 Year Brand Warranty |
Warranty Policy | No Warranty for Physical & Burn Damage |
Brand: Uniview
Series: Dolphin
Model: IPC6624SR-X33-VF
Product Type: PTZ Camera
Form Factor: Dome
Camera Type: Varifocal
Usage: Outdoor
Casing: Metal
Body Color: Black and White
Working Distance: 150 Meter
Image Sensor: 1/2.8" CMOS Sensor
Mega Pixel: 4MP
Camera Resolution: 2688 (H) × 1520 (V)
Shutter Time: Auto/Manual, 1 ~ 1/100000s
Day & Night: IR-cut filter with auto switch (ICR)
Lens Type: AF automatic focusing and motorized zoom lens
Focal Length: 4.5 - 148.5mm
Optical Zoom: 33x
Field of View: (H) 51.4° - 2.5° (V) 30.3° - 1.4° (D) 63.2° - 3.0°
IR Range: Up to 150m
Wavelength: 850nm
IR On/Off Control : Auto/Manual
Lifetime: 60,000 Hours
DORI Distance:
4.5mm: D: 105.8m, O: 42.3m, R: 21.2m, I: 10.6m
148.5mm: D: 3172.5m, O: 1269.0m, R: 634.5m, I: 317.3m
SNR: 56dB
White Balance: Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Pan Range: 360° (endless)
Pan Speed: 0.1°/s ~ 200°/s
Tilt Range: –15° ~ 90° (auto reverse)
Tilt Speed: 0.1°/s ~ 120°/s
Number of Presets: 1024
Patrol Stay Time : 15s~1800s
Home Position: Support
Interface: Lan
Ethernet: 1 * RJ45 10M/100M Base-TX Ethernet
Protocol:
IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP,
DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL/TLS, 802.1x, SNMP
Maximum User Access : 32 Users
Compatible Integration: ONVIF (Profile S, Profile G, Profile T), API,SDK
Client: EZStation,EZView,EZLive
Storage Type: ANR,NAS(NFS)
Edge Storage: Micro SD, up to 256GB
Video Compression : Ultra 265, H.265, H.264
Frame Rate:
Main Stream: 4MP(2688*1520),Max 30fps;
Sub Stream: 2MP (1920*1080), Max 30fps;
Third Stream: D1 (720*576), Max 30fps;
ROI: Up to 8 areas
Video Stream: Triple streams
OSD: Up to 8 OSDs
Audio Compression: G.711U, G.711A
Power Supply: AC 24V
Power Consumption: Max 25W
Ingress Protection : IP67
Surge Protection: 4KV
CE: : EN 55032,EN 61000, EN IEC 61000
Safety: UL 62368-1, 2nd Ed., Issue Date: 2014-12-01
Dimensions: 227 x 384.8mm
Weight (gm): 5.28kg
Warranty: 1 Year
Made in: China
