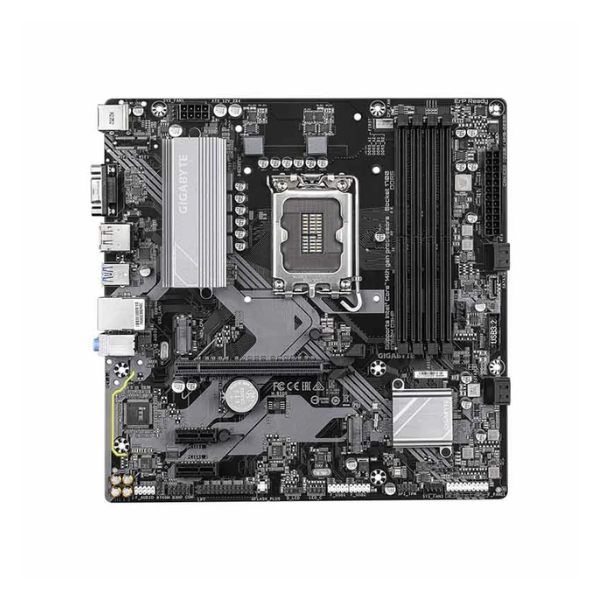

Gigabyte B760M D3HP DDR5 Intel 14th, 13th and 12th Gen Motherboard
Key Features
Support for 13th/14th and 12th Generation Intel Core, Pentium Gold and Celeron Processors
Intel B760 Express Chipset
4 x DDR5 7600(O.C.) DIMM sockets supporting up to 256GB
Realtek Audio CODEC
Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
3 Years Brand Warranty
Brand: Gigabyte
Status: In-Stock
SKU: Gigabyte B760M D3HP DDR5
Warranty Type: 3 Years Brand Warranty
1
Specification
Basic Info | |
|---|---|
| Brand | Gigabyte |
| Model | B760M D3HP DDR5 |
Design | |
|---|---|
| Product Type | Desktop Motherboard |
| Form Factor | Micro-ATX |
| Body Color | Black |
CPU | |
|---|---|
| Chipset | Intel B760 |
| Sockets Supported | LGA1700 |
| CPU Supported | 14th, 13th, and 12th Generation Intel Core, Pentium Gold and Celeron Processors |
Memory | |
|---|---|
| Memory Type | DDR5 |
| Memory Speed (MHz) | Max 5600+(OC) MT/s Memory Modules |
| Memory Slot | 4 |
| Memory Max | 256GB |
Storage | |
|---|---|
| HDD Interface | SATA |
| HDD Slot | 4 |
| SSD Interface | M.2 |
| SSD Slot | 2 |
Graphics | |
|---|---|
| Graphics Chipset | Intel HD Graphics support |
| Expansion Slots | 1 x PCI Express x16 Slot |
Audio | |
|---|---|
| Chip | Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps) |
Network | |
|---|---|
| Ethernet LAN | 10/100/1000Mbps |
Ports & Interfaces | |
|---|---|
| USB | 1 x USB Type-C port 5 x USB 3.2 Gen 1 ports 2 x USB 2.0/1.1 ports 4 x USB 2.0/1.1 ports |
| HDMI Port | 1 |
| Display Port | 1 |
| VGA Port | 1 |
| RJ-45 Ports | 1 |
| TPM Port | 1 |
| Audio Jack | 3 |
Lightning | |
|---|---|
| RGB Support | ARGB |
| RGB Sync | RGB Fusion |
| RGB Connector | 1 x addressable LED strip Header, 1 x RGB LED strip Header |
Bios Info | |
|---|---|
| BIOS Type | 1 x 128 Mbit Flash |
| BIOS Model | AMI UEFI BIOS |
Power | |
|---|---|
| Power Consumption | 60W |
Additional Info | |
|---|---|
| Country Of Origin | Taiwan |
| Made in | China |
Physical Description | |
|---|---|
| Dimensions | 265 x 265 x 54mm |
| Weight | 1.00kg |
Warranty | |
|---|---|
| Warranty | 3 Years |
| Warranty Details | 3 Years Brand Warranty |
| Warranty Policy | No Warranty for Physical & Burn Damage |
Description
Brand: Gigabyte
Model: B760M D3HP DDR5
Product Type: Desktop Motherboard
Form Factor: Micro-ATX
Body Color: Black
Chipset: Intel B760
Sockets Supported: LGA1700
CPU Supported: 14th, 13th, and 12th Generation Intel Core, Pentium Gold and Celeron Processors
Memory Type: DDR5
Memory Speed (MHz): Max 5600+(OC) MT/s Memory Modules
Memory Slot: 4
Memory Max: 256GB
HDD Interface: SATA
HDD Slot: 4
SSD Interface: M.2
SSD Slot: 2
Graphics Chipset: Intel HD Graphics support
Expansion Slots: 1 x PCI Express x16 Slot
Chip: Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
Ethernet LAN: 10/100/1000Mbps
USB:
1 x USB Type-C port
5 x USB 3.2 Gen 1 ports
2 x USB 2.0/1.1 ports
4 x USB 2.0/1.1 ports
HDMI Port: 1
Display Port: 1
VGA Port: 1
RJ-45 Ports: 1
TPM Port: 1
Audio Jack: 3
RGB Support: ARGB
RGB Sync: RGB Fusion
RGB Connector: 1 x addressable LED strip Header, 1 x RGB LED strip Header
BIOS Type: 1 x 128 Mbit Flash
BIOS Model: AMI UEFI BIOS
Power Consumption: 60W
Dimensions: 265 x 265 x 54mm
Weight: 1.00kg
Warranty: 3 Years
Country Of Origin: Taiwan
Made in: China
