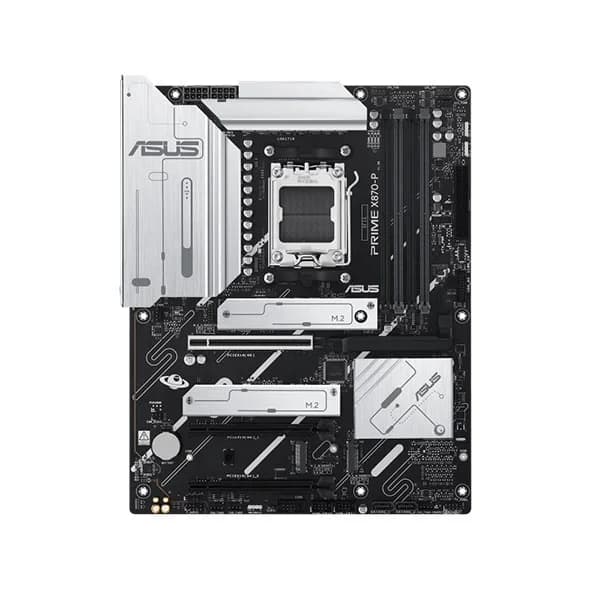

Asus Prime X870-P-CSM AMD AM5 Motherboard
Key Features
Suport For AMD Ryzen 9000 & 8000 & 7000 Processor
AMD X870 Chipset
4 X DDR5 RAM Sockets Supporting up to 192GB
Realtek 2.5Gb Ethernet
Realtek LAN Chip
3 Year Brand Warranty
Specification
Basic Info | |
|---|---|
| Brand | ASUS |
| Series | Prime |
| Model | X870-P-CSM |
Design | |
|---|---|
| Product Type | Desktop |
| Form Factor | ATX |
| Body Color | Black & Silver |
CPU | |
|---|---|
| Chipset | AMD X870 |
| Sockets Supported | AM5 |
| CPU Supported | AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors |
Memory | |
|---|---|
| Memory Type | DDR5 |
| Memory Speed (MHz) | 8200(O.C)/ 8000(O.C)/ 7950(O.C)/ 7900(O.C) 5200(O.C.)/ 4800/ 4000 MHz ECC & non-ECC Un-buffered memory |
| Memory Slot | 4 |
| Memory Max | 192GB |
Storage | |
|---|---|
| HDD Interface | 2 x SATA 6Gb/s ports |
| SSD Slot | 4 |
| SSD Interface | 4 x M.2 4 x M.2 ((1 x M.2, type 2280 (supports PCIe 5.0 x4 mode) (1 x M.2, type 2242/2260/2280 (supports PCIe 4.0 x4 mode) (1 x M.2, type 2280 (supports PCIe 4.0 x4 mode) (1 x M.2, type 2280 (supports PCIe 3.0 x2 mode) |
Graphics | |
|---|---|
| Graphics Chipset | Integrated With Processor |
| Expansion Slots | 2 x PCIe 4.0 x16 (support x1 mode) 1 x PCIe 5.0 x16 (supports x16 mode) SafeSlot with Q-Release |
Audio | |
|---|---|
| Chip | Realtek 7.1 Surround Sound High Definition Audio CODEC |
Network | |
|---|---|
| Ethernet LAN | 1 x Realtek 2.5Gb Ethernet |
Ports & Interfaces | |
|---|---|
| USB 3 Port | 2 x USB4 (40Gbps) ports (2 x USB Type-C) 1 x USB 10Gbps port (1 x Type-A) 3 x USB 5Gbps ports (3 x Type-A) 4 x USB 2.0 ports (4 x Type-A) |
| HDMI Port | 1 |
| TPM Port | 1 |
Lightning | |
|---|---|
| RGB Support | RGB |
| RGB Sync | Aura Sync |
Bios Information | |
|---|---|
| BIOS Type | 256 Mb Flash ROM |
| BIOS Model | UEFI AMI BIOS |
Power | |
|---|---|
| Power Consumption | 70W |
Additional Info | |
|---|---|
| Country Of Origin | Taiwan |
| Made in | China |
Physical Description | |
|---|---|
| Dimensions | 12 inch x 9.6 inch |
Warranty | |
|---|---|
| Warranty | 3 Years |
| Warranty Details | 3 Years Replacement Warranty *(Terms and Conditions Applied) |
| Warranty Policy | No Warranty for Physical & Burn Damage |
Description
Brand: ASUS
Series: Prime
Model: X870-P-CSM
Product Type: Desktop
Form Factor: ATX
Body Color: Black & Silver
Chipset: AMD X870
Sockets Supported: AM5
CPU Supported: AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors
Memory Type: DDR5
Memory Speed (MHz): 8200(O.C)/ 8000(O.C)/ 7950(O.C)/ 7900(O.C)
5200(O.C.)/ 4800/ 4000 MHz ECC & non-ECC Un-buffered memory
Memory Slot: 4
Memory Max: 192GB
HDD Interface: 2 x SATA 6Gb/s ports
SSD Slot: 4
SSD Interface: 4 x M.2 4 x M.2 ((1 x M.2,
type 2280 (supports PCIe 5.0 x4 mode)
(1 x M.2, type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
(1 x M.2, type 2280 (supports PCIe 4.0 x4 mode)
(1 x M.2, type 2280 (supports PCIe 3.0 x2 mode)
Graphics Chipset: Integrated With Processor
Expansion Slots: 2 x PCIe 4.0 x16 (support x1 mode)
1 x PCIe 5.0 x16 (supports x16 mode) SafeSlot with Q-Release
Chip: Realtek 7.1 Surround Sound High Definition Audio CODEC
Ethernet LAN: 1 x Realtek 2.5Gb Ethernet
USB 3 Port: 2 x USB4 (40Gbps) ports (2 x USB Type-C)
1 x USB 10Gbps port (1 x Type-A)
3 x USB 5Gbps ports (3 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
HDMI Port: 1
TPM Port: 1
RGB Support: RGB
RGB Sync: Aura Sync
BIOS Type: 256 Mb Flash ROM
BIOS Model: UEFI AMI BIOS
Power Consumption : 70W
Dimensions: 12 inch x 9.6 inch
Warranty: 3 Years
Country Of Origin: Taiwan
Made in: China
